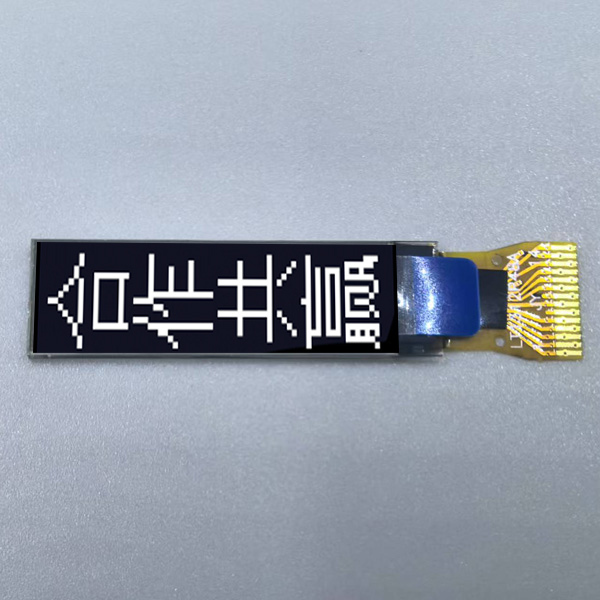

White 0.91 Inch OLED Display Module 128x32 Dots SSD1312 4PIN I2C Interface
LIMITO OLED Description:
Display Size:
Diagonal Size: 0.91 inches.
Resolution: 128x32 pixels, is most common for smaller displays.
OLED Type: Monochrome: Most 0.91-inch OLED displays are monochrome (usually white, blue, or yellow), meaning they display one color against a black background
Interface:
I2C: Most 0.91-inch OLED modules use the I2C interface for communication, which requires only two data lines (SDA for data and SCL for the clock). I2C is convenient for simpler wiring and slower communication speeds.
SPI: Some 0.91-inch OLED modules may also support SPI (Serial Peripheral Interface), which allows for faster data transfer but requires additional wiring.
Driver IC: SSD1312: This is one of the most popular OLED controllers, widely used in 0.91-inch modules
Power Supply: OLED displays are relatively low-power compared to traditional LCDs because they don’t require a backlight—each pixel emits its light. However, they still need a supply of 3.3V or 5V (depending on the model) to operate.
PCB Mounting: Rigid PCB: Others come with a rigid PCB, which is more common in embedded or stationary applications like handheld devices, sensors, and gadgets.
LIMITO OLED Specification:
| Part Name: | OLED Display Module |
| Limito Part ID: | QG-2832TSWLG01P1 |
| Display Mode: | Passive Matrix |
| Display Color: | Monochrome(White) |
| Drive Duty: | 1/32 Duty |
| Number of Pixels: | 128 x 32 |
| Panel Size: | |
| LCM+PCB Size: | 38x12x2.3(mm) |
| Active Area: | 5.584 x22.38 (mm) |
| Pixel Pitch: | 0.175 x 0.175 (mm) |
| Pixel Size: | 0.155 x 0.155(mm) |
LIMITO OLED Mechanical Drawing
LIMITO is OLED Display module supplier,it’s a market leader and pioneer in OLED solutions which include Transparent OLED,Flexible OLED,Monochrome OLED,Character OLED,Segment OLED,Area Color OLED, Full color OLED,Customizedized design products ect.
LIMITO OLED Benefits:
High Contrast Ration(10,000:1)
Free Viewing Angle
Fast Response Time(<15us)
Thinner & Lighter & Durable
Wide operation Temperature-40°c~+85°c
Self-emitting, no need for a backlight
LIMITO OLED Application:
Industrial: Mearusring& meter, OA Equipment, POS & Server Card Reader, Door Security, USB Key
Communication: Mobile Phone, Bluetooth Device, Router, Set-Top Box
Automotive: Head Up display, Car Audio, Speed Detector, ECT, Timer, Climate Control, Dashboard
PC peripheral: Keyboard, Mouse, Printer, Scanner, NAS, Digital Pen
Medical: Glucose Meter, Oximeter, Blood-pressure Meter, Beauty & Cosmetic Equipment
Consumer: IoT, E-Cigarette, Wearable Device, Remote Controller, Game Machine, Digital Camera, Audio Video Equipment
