Monochrome 0.69 Inch OLED 96X16 Pixels Oled Display
LIMITO OLED Description:

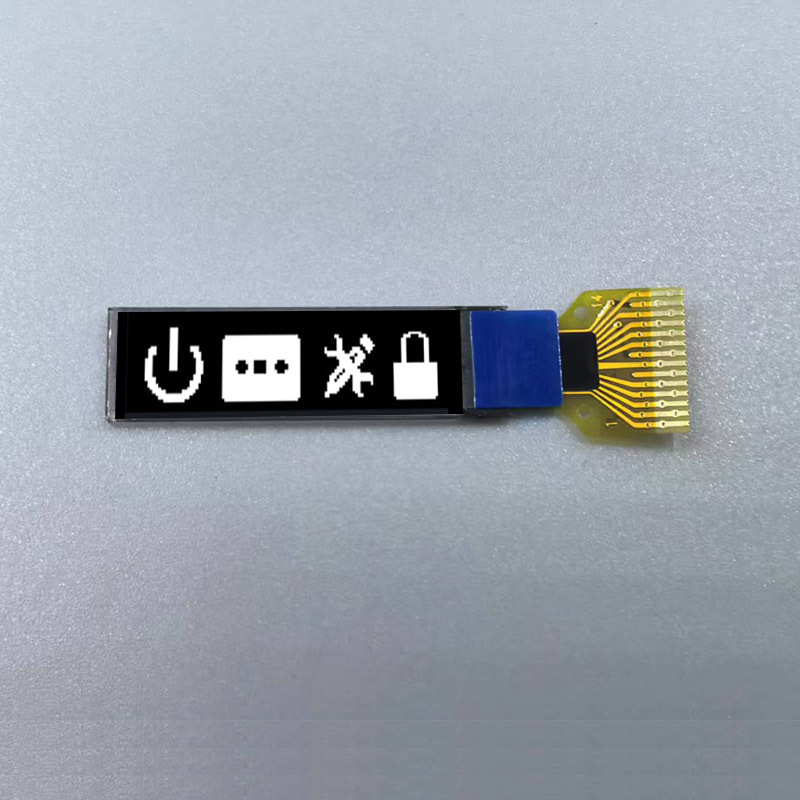

The QG-9616TSWGG01 is a high-performance graphic OLED display panel measuring 0.69 inches diagonally. It consists of 96x16 individual white OLED pixels, providing excellent contrast and an extremely wide viewing angle. The display utilizes the SSD1312 controller IC, which communicates via the efficient I2C serial interface. As the OLED panel generates its own light, there is no need for a backlight, resulting in reduced power consumption.
The display features a soldering type Flexible Printed Circuit (FPC), eliminating the need for a separate connector. You can
directly solder the FPC onto your PCB, ensuring a secure and reliable connection. It is compatible with various microcontroller units (MCUs) such as 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi, making it easily controllable and adaptable to different embedded systems.
Due to its versatility, the display can be utilized in a wide range of applications, including industrial devices, security
systems, consumer electronics, medical equipment, and handheld devices. Its high contrast, wide viewing angle, and operating temperature make it a reliable choice for various projects.
For further Customizedizedization, LIMITO offers the option to Customizedizedize the FPC and provide integrated cover lens, touch screen, or driver board solutions according to specific Customizedizeder requirements. This ensures a tailored and optimized display solution for individual needs
LIMITO OLED specification:
| Part Name: | OLED Display Module |
| Limito Part ID: | QG-9616TSWGG01 |
| Display Mode: | Passive Matrix |
| Display Color: | Monochrome (White) |
| Drive Duty: | 1/16 Duty |
| Number of Pixels: | 96*16 |
| Panel Size: | 24*6.9*1.25(mm) |
| Active Area: | 17.26*3.18 (mm) |
| Pixel Pitch: | 0.18*0.2(mm) |
| Pixel Size: | 0.16*0.18(mm) |

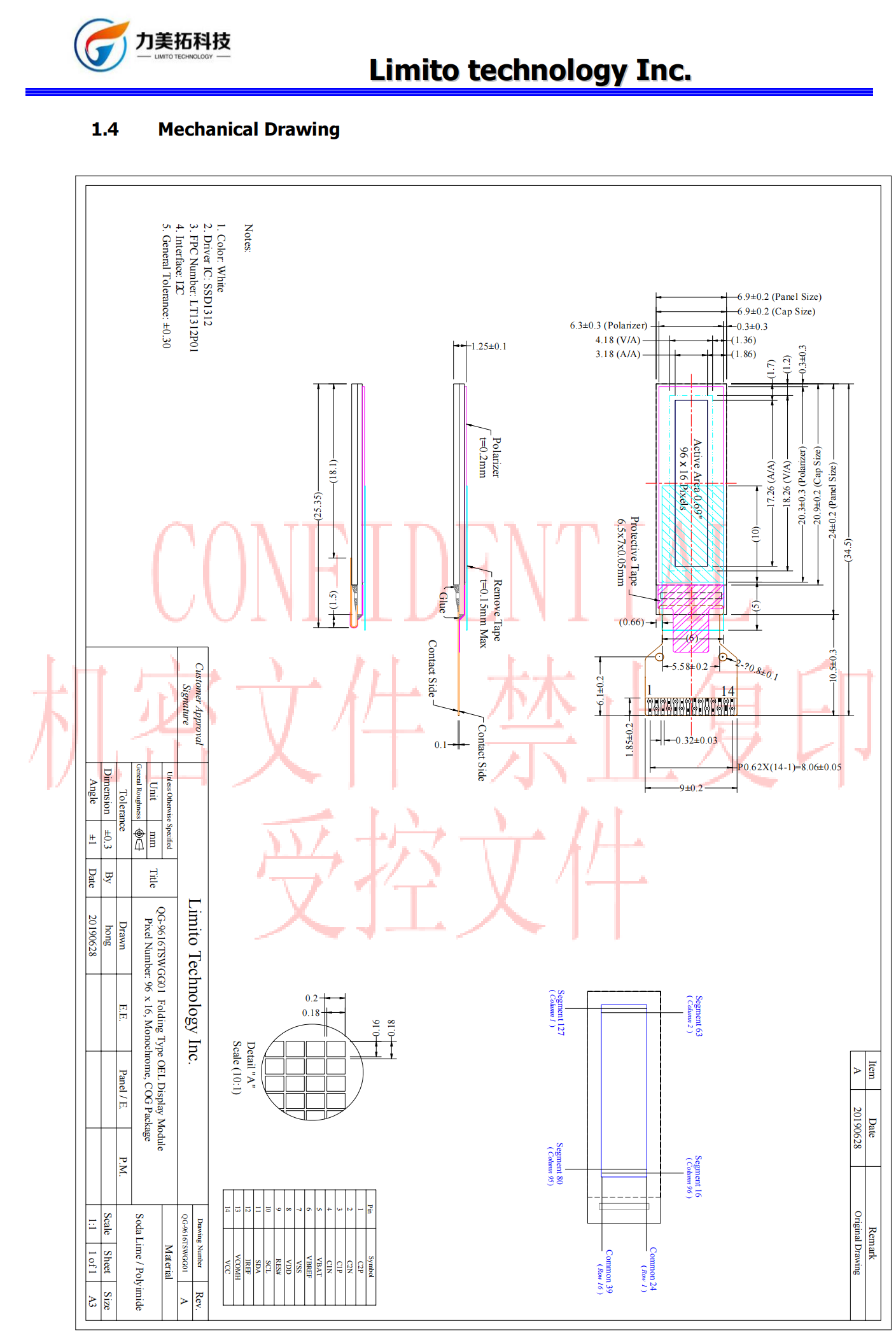

LIMITO OLED Mechanical Drawing
LIMITO is OLED Display module supplier,it’s a market leader and pioneer in OLED solutions which include Transparent OLED,Flexible OLED,Monochrome OLED,Character OLED,Segment OLED,Area Color OLED, Full color OLED,Customizedized design products ect.
LIMITO OLED Benefits:
High Contrast Ration(10,000:1)
Free Viewing Angle
Fast Response Time(<15us)
Thinner & Lighter & Durable
Wide operation Temperature-40°c~+85°c
Self-emitting, no need for a backlight
LIMITO OLED Application:
Industrial: Mearusring& meter, OA Equipment, POS & Server Card Reader, Door Security, USB Key
Communication: Mobile Phone, Bluetooth Device, Router, Set-Top Box
Automotive: Head Up display, Car Audio, Speed Detector, ECT, Timer, Climate Control, Dashboard
PC peripheral: Keyboard, Mouse, Printer, Scanner, NAS, Digital Pen
Medical: Glucose Meter, Oximeter, Blood-pressure Meter, Beauty & Cosmetic Equipment
Consumer: IoT, E-Cigarette, Wearable Device, Remote Controller, Game Machine, Digital Camera, Audio Video Equipment
