0.96" Small OLED Display 128x64 Pixels ST7315
LIMITO OLED Description:
- Size: 0.96 inches
- Resolution: 128x64 pixels
- Colors: Yellow and blue OLED for vibrant contrast
- Driver: ST7315 for reliable operation
- Low Power Consumption: Ideal for battery-powered projects
LIMITO OLED specification:
| Part Name: | OLED Display Module |
| Limito Part ID: | QGX-2864TMBYG01 |
| Display Mode: | Passive Matrix |
| Display Color: | Monochrome (Yellow&Blue) |
| Drive Duty: | 1/64 Duty |
| Number of Pixels: | 128*64 |
| Panel Size: | 26.70*19.26*1.27(mm) |
| Active Area: | 21.74*11.2(mm) |
| Pixel Pitch: | 0.17*0.17(mm) |
| Pixel Size: | 0.15*0.15(mm) |

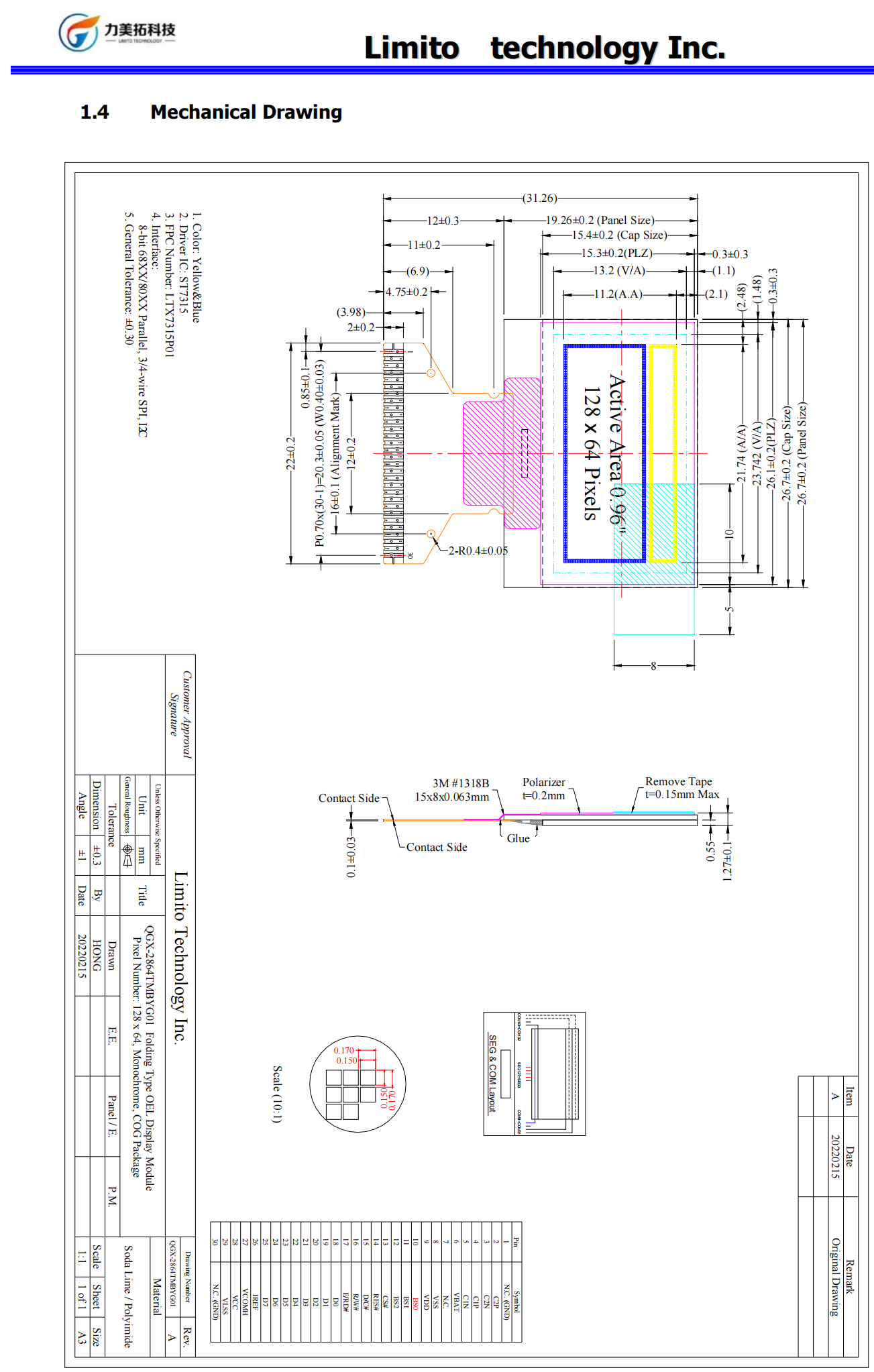

LIMITO OLED Mechanical Drawing
LIMITO is OLED Display module supplier,it’s a market leader and pioneer in OLED solutions which include Transparent OLED,Flexible OLED,Monochrome OLED,Character OLED,Segment OLED,Area Color OLED, Full color OLED,Customizedized design products ect.
LIMITO OLED Benefits:
High Contrast Ration(10,000:1)
Free Viewing Angle
Fast Response Time(<15us)
Thinner & Lighter & Durable
Wide operation Temperature-40°c~+85°c
Self-emitting, no need for a backlight
LIMITO OLED Application:
Industrial: Mearusring& meter, OA Equipment, POS & Server Card Reader, Door Security, USB Key
Communication: Mobile Phone, Bluetooth Device, Router, Set-Top Box
Automotive: Head Up display, Car Audio, Speed Detector, ECT, Timer, Climate Control, Dashboard
PC peripheral: Keyboard, Mouse, Printer, Scanner, NAS, Digital Pen
Medical: Glucose Meter, Oximeter, Blood-pressure Meter, Beauty & Cosmetic Equipment
Consumer: IoT, E-Cigarette, Wearable Device, Remote Controller, Game Machine, Digital Camera, Audio Video Equipment
